LIQUID FLUSH PUMP WITH OIL LUBRICATOR

4 litre tank, 10,000 PSI, liquid flush pump with oil lubricator, all hoses and fittings.

Compact unit used for liquid valve flushing.

PART NUMBER: PLI-LFP

CALIBRATED CHART RECORDER

10,000 PSI Calibrated Chart Recorder as part of an integrity testing rig. The whole unit is ounted in a hinged door stainless steel cabinet, fully weather sealed and lockable..

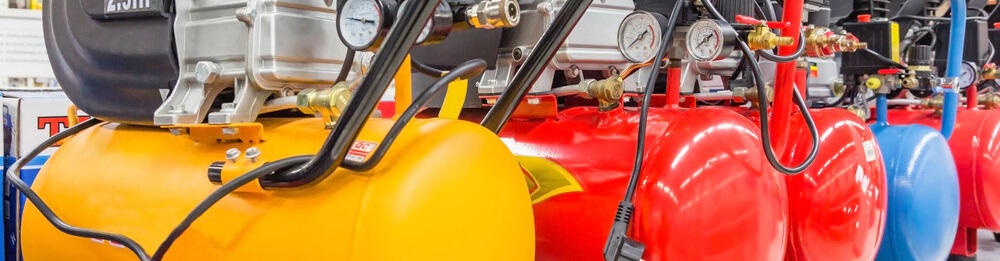

DIESEL POWERED AIR COMPRESSOR

ZONE 1 -Diesel Powered Air Compressor, 30 CFM, 10HP, PULL start, diesel motor, 45 litre receiver, filter regulator with two quick air connectors for air hoses, all electrics are removed. Emergency and auto shut down controls, spark arrested motor. All assembled on a heavy duty protective steel frame designed to work in the dessert.

PART NUMBER: PLI-DPAC-Z1

PLI DIESEL AIR COMPRESSOR.

The PLI Diesel Air Compressor with Electric Start.

PART NUMBER: PLI-DPAC-ES

CUSTOM SIZE

All specifcations for this unit are standard as per the “Open Skid Unit” with the added benefit of a custom size frame as per customer request.

LIQUID FLUSH PUMP OPEN SKID

Open Skid Unit with Power Master 3 Lubrication Sealant Pump, 38 litre tank with 10,000 PSI, liquid flush pump, two supply hose reels and full pneumatic control cabinet. Designed for the back of a 4×4 pickup or a light truck. All equipment is air operated and assembled on a heavy duty steel protective frame.

PART NUMBER: PLI-OSU

ALUMINIUM TROLLEY

The PLI Sturdy Aluminium Trolley, 4 pneumatic wheels for carrying service equipment throughout process plant. Complete with tie-downs and product and air hose reels.

PART NUMBER: PLI-AL-T

HYDRAULIC INJECTION PUMP

The PLI Super Blue Sealant is extremely viscous and requires the Super Blue Hydraulic Injection Pump to be able to inject this product into valves. Ordinary grease pumps will not pump the PLI Super Blue Sealant.

PART NUMBER: PLI-SB-HIP

HIGH PRESSURE SEALING PUMP

The PLI Powermaster III – 14,000 psi, high pressure lubricating and sealing pump. This unit is the same frame height as the PM3 7,500 but has a 14,000 PSI lube/sealant pump for the extreme high pressure service work – good for servicing any size valve.

POWERMASTER PUMP

The PLI PM3 Powermaster Pump (Premium) – 7,500 psi high pressure lubricating and sealing pump. The PM3 pump is good for injecting lubricant or sealant in to any size Gate, Plug or Ball Valve.

PART NUMBER: PLI-PM3-7PSI PRM

LIGHT WEIGHT BUCKET PUMP

The PLI Lightweight Bucket Pump – 7,500 PSI is for sealant and lubricating pumping. 9649L 7,500 PSI Bucket Pump is designed as a compact light weight, high pressure unit that is easily carried in a helicopter. Good for servicing up to 12″ ball valves.

PART NUMBER: PLI-BP-LW

SS TANK TROLLEY FLUSH PUMP

The PLI Stainless Steel Tank Trolley Flush Pump holds 28 litres of liquid valve flush, used for injecting liquied valve flush into valve for cleaning internal lube ports & components prior to lubing.

PART NUMBER: PLI-FP-SS-TT

WHIP HOSE

The PLI Whip Hose is an integral part of the pump’s delivery and safety feature. A short flexible high pressure hose allows the operator to step back from the valve and still have control of flow and isolation via the stainless steel ball valve. There is a universal Z-swivel with a 90 degree elbow and a LA114 lube adaptor, these items give greater flexibility when connecting to the valve. The pressure gauge indicates the delivery pressure at the lubrication fitting. This safety whip has a high pressure full flow quick connector, for easy connection/disconnection to the supply hose.

PART NUMBER: PLI-WP
